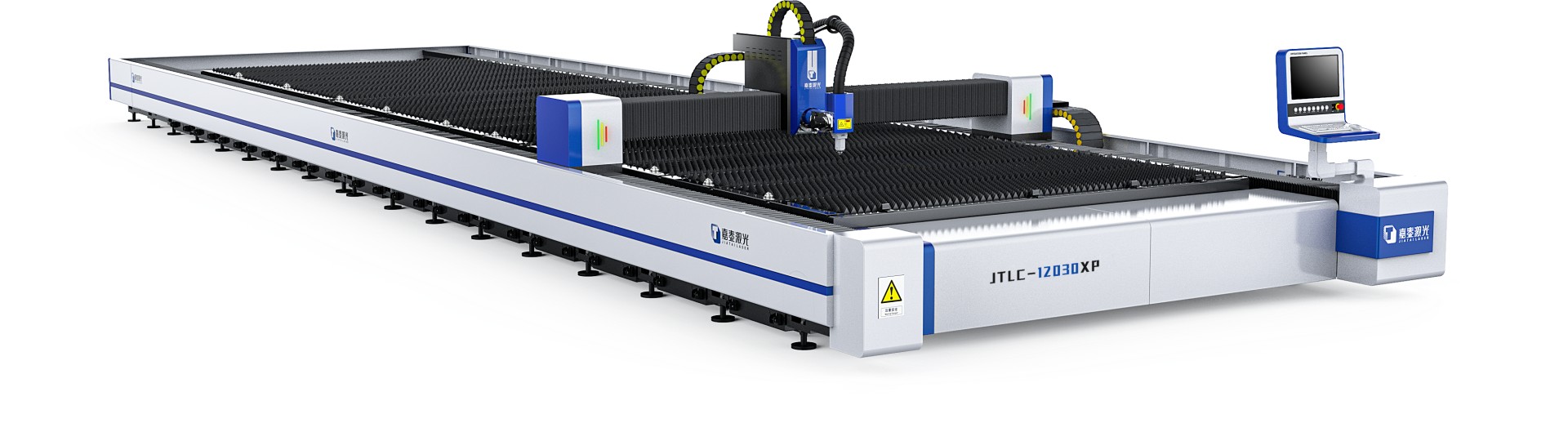

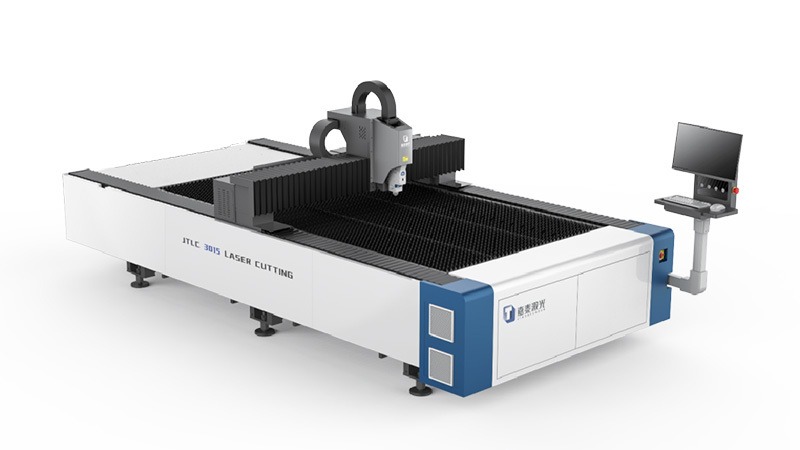

① High-power open platform structure

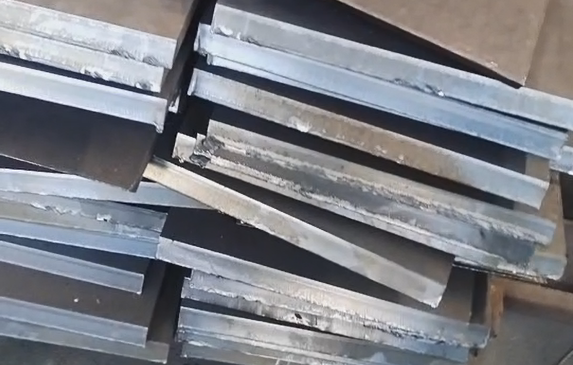

② A bevel cutting function can be equipped, can realize the application of V, I, X, Y, K, gradient and other bevels, realize visual calibration, and automatically correct errors.
③ Perpendicularity compensation can be realized according to the plate placement and cutting.
④ Intelligent process system, one-button operation, equipped with various intelligent functions, improve processing efficiency.
⑤ Integrated design, simple and convenient to install!
| Model Number | JTLC12030 | JTLC14030 | JTLC14035 |
|---|---|---|---|
| Processing Area | 12000mm*3000mm | 14000mm*3000mm | 14000mm*3500mm |
| Laser Power | 3KW-60KW (Optional) | ||
| XY Axis Maximum Positioning Speed | X: 90m/min | Y: 105m/min | ||
| XY Axis Positioning Accuracy | ±0.05mm/m | ||
| XY Axis Repeated Positioning Accuracy | ±0.05mm | ||
| Max. Acceleration | 1.0G | ||
* The parameters are for reference only. The actual operating speed is subject to the actual configuration of the motor.
