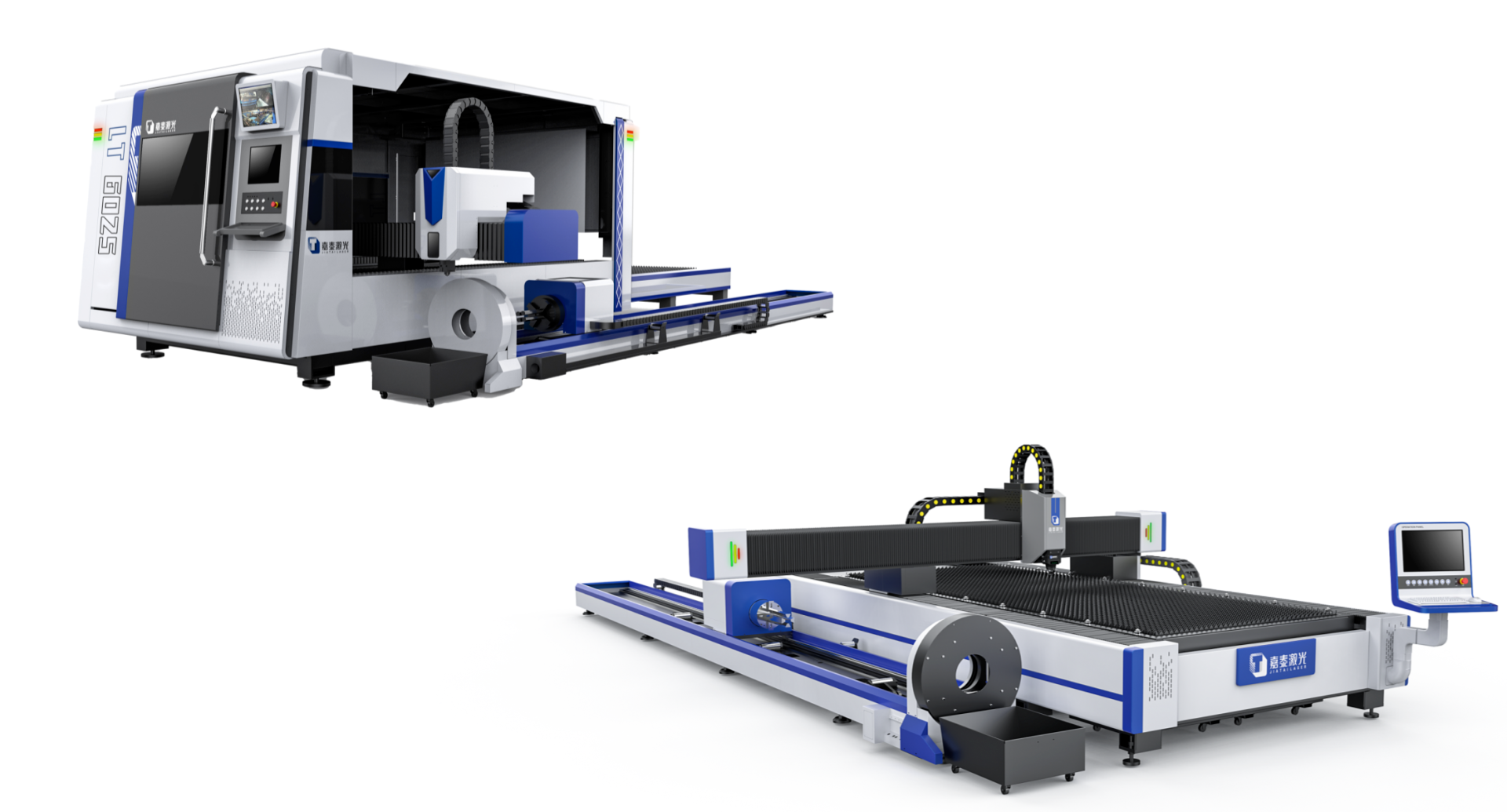

Plate and Pipe Integrated Laser Cutting Machine Series

① Tube and sheet dual-purpose, small footprint.

② Plane and tube cutting dual system switching, flexible processing, easy operation.

③ Stable performance, simple operation and easy to learn

④ Low operating costs and easy maintenance!

Model Number	JTLT3015		JTLT4020		JTLT6025
Parameters	Plane Cutting	Tube Cutting	Plane Cutting	Tube Cutting	Plane Cutting	Tube Cutting
Cutting Range	3000mm*1500mm	Round: Φ30-Φ350mm Square: 30-250mm	4000mm*2000mm	Round: Φ30-Φ350mm Square: 30-250mm	6000mm*2500mm	Round: Φ30-Φ350mm Square: 30-250mm
Laser Power	1.5KW - 6KW (Optional)
X-Axis Travel	1500mm	350mm	2000mm	350mm	2500mm	350mm
Y-Axis Travel	3000mm	6100mm	4000mm	6100mm	6000mm	6100mm
Max. Speed	X: 88m/min Y: 74m/min	50m/min	X: 88m/min Y: 74m/min	50m/min	X: 88m/min Y: 74m/min	50m/min
Positioning Accuracy	±0.05mm/m
Repeated Accuracy	±0.05mm
Max. Acceleration	0.5G

* The parameters are for reference only. The actual operating speed is subject to the actual configuration of the motor.
